New energy commercial vehicle

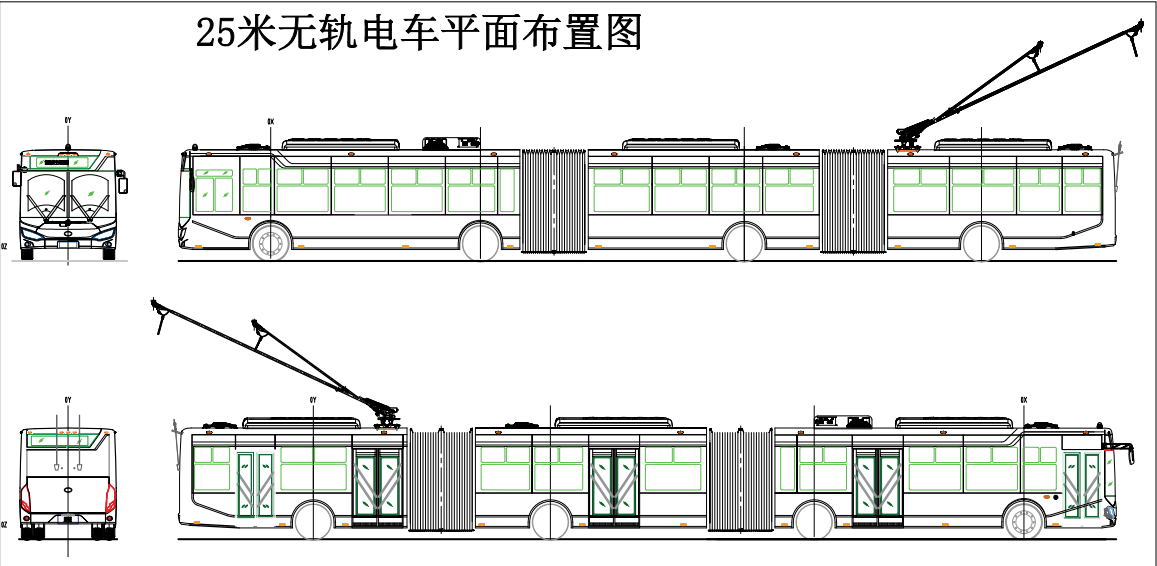

25M Trolley City Bus | |
車型Model |
WH6250GD |
Dimension外形尺寸長*寬*高 |
24680*2550*3750（Included?collector pole 含集電桿） |
Rated passenger準乘人數（人） |
260/40-50 |
Max Speed最高車速（km/h) |
≤69 |
Curb Weight/GVW整備質量/總質量 |
23800/39500 |
制動系統Braking |
氣壓雙管路/前后盤式 Dual air circuit/ front&rear disc braking |
|
軸距/前/后懸 front overhang/rear overhang |
5520+6940+6240 |
|
前/后懸 front overhang/rear overhang |
2430/3550 |
Front/rear track base輪距 前/后 |
2096/1836/1888/1888 |
Min. Ground Clearance最小離地間隙 |
150 |
Min. Turning Diameter最小轉彎直徑 |
≤25 |
Approach/Departure Angle接近/離去角（°） |
8/8 |
Tire輪胎規格 |
275/70R22.5 |
Battery?Type?電池類型 |
Lithium Iron Phosphate磷酸鐵鋰 |
Total Battery Capacity總電量（Kwh) |
180.9Kwh |
Suspension(front/rear)懸架系統（前/后） |
Air suspension空氣懸架 |
